Run simple job

Welcome to the basic guide on how to run calculations in the Metacentrum grid service. You will learn how to

• navigate between frontends, home directories and storages,
• make use of batch and interactive job,
• submit a job to a PBS server,
• set up resources for a job,
• retrieve job output.

Lifecycle of a job

Batch job

A typical use case for grid computing is a non-interactive batch job, when the user only prepares input and set of instructions at the beginning. The calculation itself then runs independently on the user.

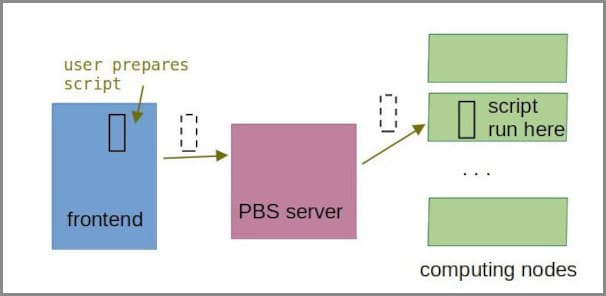

Batch jobs consist of the following steps:

1. User prepares data to be used in the calculation and instructions what is to be done with them (input files + batch script).
2. The batch script is submitted to the job planner (PBS server), which stages the job until the required resources are available.
3. After the PBS server has released the job to be run, the job runs on one of the computational nodes.
4. At this time, the applications (software) are loaded.
5. When the job is finished, results are copied back to the user’s directory according to instructions in the batch script.

Interactive job

Interactive job works in different way. The user does not need to specify in advance what will be done, neither does not need to prepare any input data. Instead, they first reserve computational resources and, after the job starts to run, work interactively on the CLI.

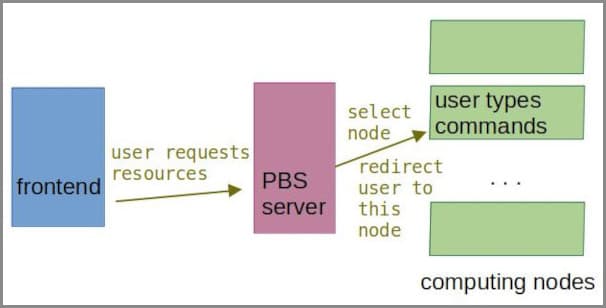

The interactive job consists of the following steps:

1. User submits request for specified resources to the PBS server
2. PBS server stages this request until the resources are available.
3. When the job starts running, user is redirected to a computational node’s CLI.
4. User does whatever they need on the node.
5. When the user logs out of the computational node or when the time reserved for the job runs out, the job is done.

Batch vs interactive

A primary choice for grid computing is the batch job. Batch jobs allow users to run massive sets of calculations without the need to overview them, manipulate data, etc. They also optimize the usage of computational resources better, as there is no need to wait for user’s input.

Interactive jobs are good for:

• testing what works and what does not (software versions, input data format, bash constructions to be used in batch script later, etc)
• getting first guess about resources
• compiling your own software
• processing, moving or archiving large amounts of data

Interactive jobs are necessary for running GUI application.

Batch job example

The batch script in the following example is called myJob.sh.

    (BUSTER)user123@skirit:~$ cat myJob.sh
    #!/bin/bash
    #PBS -N batch_job_example
    #PBS -l select=1:ncpus=4:mem=4gb:scratch_local=10gb
    #PBS -l walltime=1:00:00
    # The 4 lines above are options for the scheduling system: the job will run 1 hour at maximum, 1 machine with 4 processors + 4gb RAM memory + 10gb scratch memory are requested

    # define a DATADIR variable: directory where the input files are taken from and where the output will be copied to
    DATADIR=/storage/brno12-cerit/home/user123/test_directory # substitute username and path to your real username and path

    # append a line to a file "jobs_info.txt" containing the ID of the job, the hostname of the node it is run on, and the path to a scratch directory
    # this information helps to find a scratch directory in case the job fails, and you need to remove the scratch directory manually
    echo "$PBS_JOBID is running on node `hostname -f` in a scratch directory $SCRATCHDIR" >> $DATADIR/jobs_info.txt

    #loads the Gaussian's application modules, version 03
    module add g03

    # test if the scratch directory is set
    # if scratch directory is not set, issue error message and exit
    test -n "$SCRATCHDIR" || { echo >&2 "Variable SCRATCHDIR is not set!"; exit 1; }

    # copy input file "h2o.com" to scratch directory
    # if the copy operation fails, issue an error message and exit
    cp $DATADIR/h2o.com  $SCRATCHDIR || { echo >&2 "Error while copying input file(s)!"; exit 2; }

    # move into scratch directory
    cd $SCRATCHDIR

    # run Gaussian 03 with h2o.com as input and save the results into h2o.out file
    # if the calculation ends with an error, issue error message an exit
    g03 <h2o.com >h2o.out || { echo >&2 "Calculation ended up erroneously (with a code $?) !!"; exit 3; }

    # move the output to user's DATADIR or exit in case of failure
    cp h2o.out $DATADIR/ || { echo >&2 "Result file(s) copying failed (with a code $?) !!"; exit 4; }

    # clean the SCRATCH directory
    clean_scratch

The last two lines can be piped together.

    cp h2o.out $DATADIR/ || export CLEAN_SCRATCH=false

SCRATCH will be automatically cleaned (by the clean_scratch utility) only if the copy command finishes without error.

The job is then submitted as

    (BUSTER)user123@skirit:~$ qsub myJob.sh
    11733571.pbs-m1.metacentrum.cz # job ID is 11733571.pbs-m1.metacentrum.cz

Alternatively, you can specify resources on the command line. In this case, the lines starting by #PBS need not to be in the batch script.

    (BUSTER)user123@skirit:~$qsub -l select=1:ncpus=4:mem=4gb:scratch_local=10gb -l walltime=1:00:00 myJob.sh

Interactive job example

An interactive job is requested via qsub -I command (uppercase “i”).

    (BUSTER)user123@skirit:~$ qsub -I -l select=1:ncpus=4 -l walltime=2:00:00 # submit interactive job
    qsub: waiting for job 13010171.pbs-m1.metacentrum.cz to start
    qsub: job 13010171.pbs-m1.metacentrum.cz ready # 13010171.pbs-m1.metacentrum.cz is the job ID
    (BULLSEYE)user123@elmo3-1:~$ # elmo3-1 is computational node
    (BULLSEYE)user123@elmo3-1:~$ module add mambaforge   # make available mamba
    (BULLSEYE)user123@elmo3-1:~$ mamba list | grep scipy # make sure there is no scipy package already installed
    (BULLSEYE)user123@elmo3-1:~$ mamba search scipy
    ... # mamba returns list of scipy packages available in repositories
    (BULLSEYE)user123@elmo3-1:~$ mamba create -n my_scipy # create my environment to install scipy into
    ...
    environment location: /storage/praha1/home/user123/.conda/envs/my_scipy
    ...
    Proceed ([y]/n)? y
    ...
    (BULLSEYE)user123@elmo3-1:~$ mamba activate my_scipy # enter the environment
    (my_scipy) (BULLSEYE)user123@elmo3-1:~$
    (my_scipy) (BULLSEYE)user123@elmo3-1:~$ mamba install scipy
    ...
    Proceed ([y]/n)? y
    ...
    Downloading and Extracting Packages
    ...
    (my_scipy) (BULLSEYE)user123@elmo3-1:~$ python
    ...
    >>> import scipy as sp
    >>>

Unless you log out after 1 hour, you will get the following message:

    user123@elmo3-1:~$ =>> PBS: job killed: walltime 7230 exceeded limit 7200
    logout
    qsub: job 13010171.pbs-m1.metacentrum.cz completed

job ID

Job ID is a unique identifier in a job. Job ID is crucial to track, manipulate or delete job, as well as to identify your problem to user support.

Under some circumstances, the job can be identified by the number only (e.g. 13010171.). In general, however, the PBS server suffix is needed, too, to fully identify the job (e.g. 13010171.meta-pbs.metacentrum.cz).

You can get the job ID:

• after running the qsub command
• by echo $PBS_JOBID in the interactive job or in the batch script
• by `qstat -u your_username @pbs-m1.metacentrum.cz

Within interactive job:

    (BULLSEYE)user123@elmo3-1:~$ echo $PBS_JOBID
    13010171.pbs-m1.metacentrum.cz

By qstat command:

    (BULLSEYE)user123@perian :~$ qstat -u user123 @pbs-m1.metacentrum.cz

    Job id                 Name             User              Time Use S Queue
    ---------------------  ---------------- ----------------  -------- - -----
    1578105.pbs-m1         Boom-fr-bulk_12* fiserp                   0 Q q_1w

Job status

The basic command for getting the status of your jobs is the qstat command.

    qstat -u user123 # list all jobs of user "user123" running or queuing on the PBS server
    qstat -xu user123 # list finished jobs for user "user123"
    qstat -f <jobID> # list details of the running or queueing job with a given jobID
    qstat -xf <jobID> # list details of the finished job with a given jobID

You will see something like the following table:

                                                                     Req'd  Req'd   Elap
    Job ID               Username Queue    Jobname    SessID NDS TSK Memory Time  S Time
    -------------------- -------- -------- ---------- ------ --- --- ------ ----- - -----
    11733550.meta-pbs.*  user123 q_2h     myJob.sh         --    1   1    1gb 00:05 Q   --

The letter under the header ‘S’ (status) gives the status of the job. The most common states are:

• Q – queued
• R – running
• F – finished

To learn more about how to track running job and how to retrieve job history, see Job tracking page.

Output files

When a job is completed (no matter how), two files are created in the directory from which you have submitted the job:

1. <job_name>.o<jobID> - job’s standard output (STDOUT)
2. <job_name>.e<jobID> - job’s standard error output (STDERR)

STDERR file contains all the error messages which occurred during the calculation. It is a first place where to look if the job has failed.

Job termination

Done by user

Sometimes, you need to delete the submitted/running job. This can be done by qdel command:

    (BULLSEYE)user123@skirit~: qdel 21732596.pbs-m1.metacentrum.cz

If plain qdel does not work, add -W (force del) option:

    (BULLSEYE)user123@skirit~: qdel -W force 21732596.pbs-m1.metacentrum.cz

Done by PBS server

The PBS server keeps track of resources used by the job. In case the job uses more resources than it has reserved, PBS server sends a SIGKILL signal to the execution host.

You can see the signal as Exit_status on CLI:

    (BULLSEYE)user123@tarkil:~$ qstat -x -f 13030457.pbs-m1.metacentrum.cz | grep Exit_status
        Exit_status = -29

Exit status

When the job is finished (no matter how), it exits with a certain exit status (a number).

A normal termination is denominated by 0.

Any non-zero exit status means the job failed for some reason.

You can get the exit status by typing

    (BULLSEYE)user123@skirit:~$ qstat -xf job_ID | grep Exit_status
    Exit_status = 271

Alternatively, you can navigate to your list of jobs in PBSmon, go to tab “Jobs” and choose a particular finished job from the list.

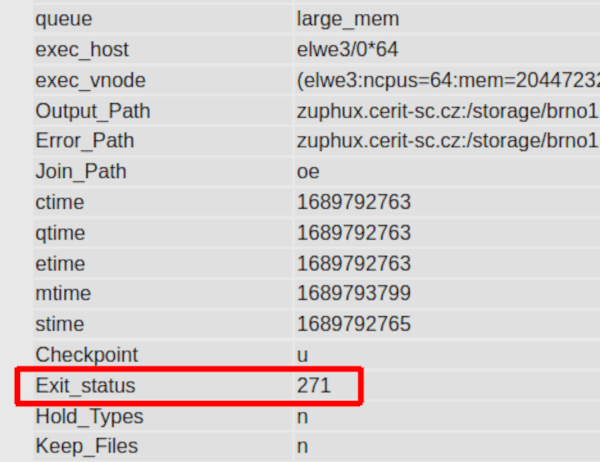

A gray table at the bottom of the page contains many variables connected to the job. Search for “Exit status” like shown in the picture below:

Exit status ranges

Exit status can fall into one of three categories, or ranges of numbers.

Exit status to SIG* type

If the exit status exceeds 256, it means an signal from operation system has terminated the job.

Usually this means the used has deleted the job by qdel, upon which a SIGKILL and/or SIGTERM signal is sent.

The OS signal have an OS code of their own.

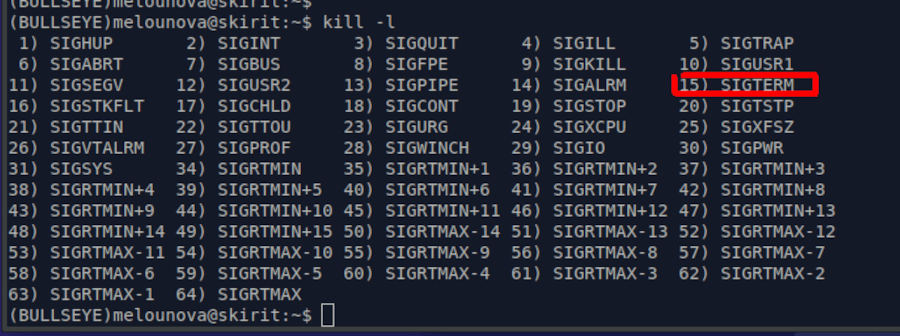

Type kill -l on any frontend to get list of OS signals together with their values.

To translate PBS exit code >= 256 to OS signal type, just subtract 256 from exit code.

For example, exit status of 271 means the OS signal no. 15 (a SIGTERM).

Common exit statuses

Most often you will meet some of the following signals:

Manual scratch clean

In case of erroneous job ending, the data are left in the scratch directory. You should always clean the scratch after all potentially useful data has been retrieved. To do so, you need to know the hostname of machine where the job was run, and path to the scratch directory.

For example:

    user123@skirit:~$ ssh user123@luna13.fzu.cz # login to luna13.fzu.cz
    user123@luna13:~$ cd /scratch/user123/job_14053410.pbs-m1.metacentrum.cz # enter scratch directory
    user123@luna13:/scratch/user123/job_14053410.pbs-m1.metacentrum.cz$ rm -r * # remove all content

The scratch directory itself will be deleted automatically after some time.
