Singularity is an open-source program for containerization used in MetaCentrum.

Singularity is invoked by the command singularity.

Singularity images (= containers) are commonly suffixed by .sif.

Singularity can import Docker images without having Docker installed or being a superuser
- see the Docker part.

Direct Singularity usage (new feature)

Key features:

• run the job as qsub -v PBS_SINGULARITY_IMAGE=<singularity_image>, <singularity_image> is the location of image, e.g.
  • /cvmfs/singularity.metacentrum.cz/Metacentrum/debian11-openpbs.sif
  • docker://ubuntu:latest
• you can also pass the argument inside batch script as #PBS -v PBS_SINGULARITY_IMAGE=<singularity_image>
• /var/spool/pbs and /etc/pbs.conf are binded into the container automatically

Example

“bash`

I want to run Deb 11 OS from a container

Currently, the MetaCentrum OS is Deb 12

(BOOKWORM)user_123@tarkil:~$ lsb_release -a

No LSB modules are available. Distributor ID: Debian Description: Debian GNU/Linux 12 (bookworm) Release: 12 Codename: bookworm

run the job

(BOOKWORM)user_123@tarkil:~$ qsub -I -l select=1:ncpus=1 -l walltime=1:00:00 -v PBS_SINGULARITY_IMAGE=/cvmfs/singularity.metacentrum.cz/Metacentrum/debian11-openpbs.sif qsub: waiting for job 3696027.pbs-m1.metacentrum.cz to start qsub: job 3696027.pbs-m1.metacentrum.cz ready

Singularity> lsb_release -a No LSB modules are available. Distributor ID: Debian Description: Debian GNU/Linux 11 (bullseye) Release: 11 Codename: bullseye Singularity>

## Singularity usage (old way)

In the basic usecases of Singularity images covered below we suppose there already exists an image `my_image.sif` we intend to use.

### Singularity environment variables

Singularity employs a few *paths* to store various temporary files:

- `CACHEDIR`:- downloaded layers
- `LOCALCACHEDIR`: - run shell exec
- `TMPDIR`: - squashfs and temporary files, there is limit 1GB by default, if you need more use scratch

<Callout  type="info" title="Tip" icon="💡">
    If `SCRATCHDIR` exists, Singularity **automatically** exports their variables ` SINGULARITY_TMPDIR` and `SINGULARITY_CACHEDIR`. That is why in the rest of this section the explicit export of these variables is not done.
</Callout>

### List options

To list all commands, run
```bash
singularity

or

singularity --help

on the command line.

Run a command in the container

Passing a command to a Singularity image is done by singularity exec "command".

For example,

(BULLSEYE)user123@skirit:~$ singularity exec my_image.sif bash -c "java -version"
java version "1.8.0_60"

Open shell in container

You can also open a shell within a container to work interactively. This is done by singularity shell command.

For example,

(BULLSEYE)user123@skirit:~$ singularity shell my_image.sif
Singularity> command_1
Singularity> command_2
...
Singularity> command_N

Use container in an interactive job

First run interactive job with scratch directory:

qsub -l select=1:scratch_local=10gb -l walltime=24:00:00

Run the container and open a shell within the container for interactive work:

user123@node123:~$ singularity shell my_image.sif
Singularity> command_1
Singularity> command_2
...
Singularity> command_N

Use container in bash job

As with any other software, it is possible to pass a batch script to a container, too.

Assume the batch script resides in /storage/city_N/home/user123/script.sh.

Variant A: put Singularity-specific option on command line

qsub -l select=1:scratch_local=10GB -l walltime=24:00:00 -- \
export LOCALCACHEDIR=$SCRATCHDIR \
singularity exec -B /storage/city_N/home/user123/script.sh:/home/user123/script.sh \
my_image.sif bash -c "/home/user123/script.sh"

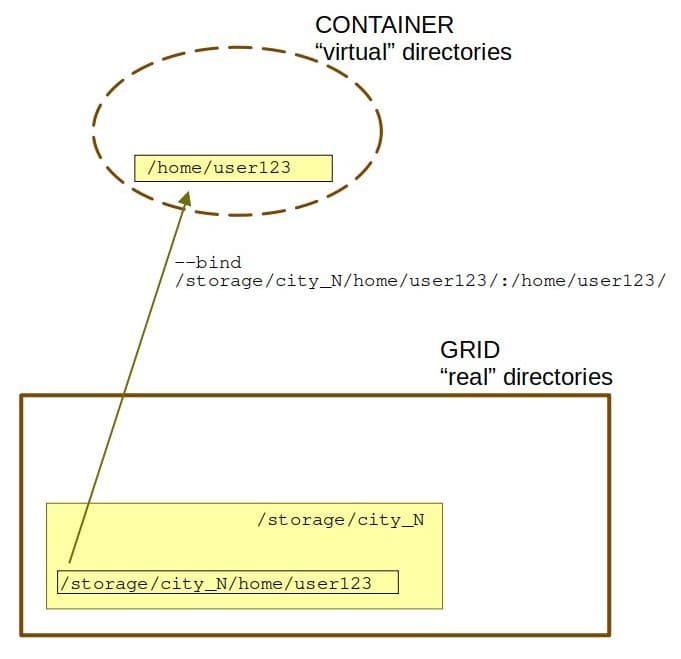

Are you familiar with how the -B (or --bind) option in Singularity works?

Without the -B option, the container will automatically bind to itself host directories on the computational node where the job is run and the script may not be found.

Variant B: hide Singularity-specific option into the script

Assume the batch script resides in /storage/city_N/home/user123/script.sh AND that you want to have the CLI command as simple as possible.

In this case, run the batch job as

qsub /storage/city_N/home/user123/script.sh

The script /storage/city_N/home/user123/script.sh will then look somehow like the following:

#!/bin/bash
#PBS -N Singularity_Job
#PBS -l select=1:scratch_local=10gb
#PBS -l walltime=24:00:00

# define variables
SING_IMAGE="/path/to/my_image.sif/"
HOMEDIR=/storage/city_N/home/$USER # substitute username and path to to your real username and path

...

# test if scratch directory is set
# if scratch directory is not set, issue error message and exit
test -n "$SCRATCHDIR" || { echo >&2 "Variable SCRATCHDIR is not set!"; exit 1; }

#set SINGULARITY variables for runtime data
export SINGULARITY_CACHEDIR=$HOMEDIR
export SINGULARITY_LOCALCACHEDIR=$SCRATCHDIR

...

singularity exec --bind /storage/ \
$SING_IMAGE/my_image.sif [commands]"

...

Pre-built Singularity images

MetaCentrum offers a couple of ready-to-use Singularity images (.sif files) together with batch scripts to run them.

These images are placed /cvmfs/singularity.metacentrum.cz/.

    /cvmfs/singularity.metacentrum.cz/
    │
    ├── BioBakery
    │
    ├── Bioconductor
    │
    ├── Biomex
    │
    ├── BioNano
    │
    ├── BIOP-Desktop
    │
    ├── Braker
    │
    ├── FEFLOW/
    |    # FEFLOW is a computer program for simulating groundwater flow,
    |    # mass transfer and heat transfer in porous and fractured media
    │
    ├── GATE
    │
    ├── HybPiper
    │
    ├── KKY/
    |    # KKY directory contains tools prepared specifically for
    |    # Department of Cybernetics (KKY) at University of West Bohemia in Pilsen
    │
    ├── Metacentrum
    |    # OSs
    │
    ├── NGC/
    |    # NGC are GPU-tuned NVIDIA frameworks for deep learning
    |    # packed as containers,
    |    # including NAMD3, OpenCV, PyTorch, qEspresso, TensorFlow
    │
    ├── NVIDIA_HPC_SDK/
    |    # an NVIDIA comprehensive suite of compilers, libraries and tools for HPC
    │
    ├── OpenFOAM/
    |    # OpenFOAM is a software for modelling complex fluid flows,
    |    # chemical reactions, turbulence and heat transfer,
    |    # solid dynamics, electromagnetics and more.
    │
    ├── Peregrine/
    |    # Peregrine is a fast genome assembler for accurate long reads
    │
    ├── RepeatExplorer
    │
    ├── RNApeg/
    |    # RNApeg is an RNA junction calling, correction, and quality-control package
    |
    ├── Rosetta
    │
    ├── RoseTTAFold2
    │
    ├── RStudio/
    |    # Integrated development environment (IDE) for R
    │
    ├── TE-Tools/
    |    # Dfam TE Tools is a container
    |    # that includes RepeatMasker, RepeatModeler, and coseg
    │
    ├── Trinity

Docker usage

Docker is just another type of container designed for single-user system that requires root priviliges.

For safety reasons, running Docker images directly is not possible on Metacentrum nodes.

If you need to use a Docker image in MetaCentrum, either

• run it in Singularity as described below, or
• use Kubernetes service.

Kubernetes service

Kubernetes is a Docker-specialized platform based on Kubernetes orchestrator.

In general, the platform can be used for almost anything, starting with a simple web application, to running a full remote desktop or a complex workflow pipeline.

Run in Singularity

If you have an existing Docker image, you can run it without root privileges in Singularity.

If you want to change something or make your own image from scratch, you’ll need root privileges; go to Kubernetes.

Prepare Singularity image from Docker image as:

singularity build image.img docker://tensorflow/tensorflow:latest

Start docker image as:

qsub -l select=1 -l walltime=24:00:00 -- /usr/bin/singularity exec docker://ubuntu:latest echo "Hello Dinosaur!"

Docker download instructions of the type

docker pull sangerpathogens/circlator

are in Singularity replaced as

singularity pull docker://sangerpathogens/circlator

This command will create circlator_latest.sif, a singularity image of docker image.

Docker mounting command of the type

docker run -v /home/ubuntu/data:/data sangerpathogens/circlator

are in Singularity replaced by

mkdir circ_read; singularity run -B ./circ_read/:/data ./circlator_latest.sif

where circ_read is the folder used for getting data into an image. By running the command you are in the image and using df -h you can check that the folder is mounted.

For more details see https://www.sylabs.io/guides/3.7/user-guide/singularity_and_docker.html.

Example

Let’s say you want to run Chronusq tool, an quantum chemical software package.

This is a small tool and can be compiled directly on the frontend. The resulting .sif image will be about 166 MB large.

Alternatively, you can setup and interactive job and work from within the job.

First set path for temporary files: (Default is /tmp which has quota of only 1 GB.)

export SINGULARITY_TMPDIR=/storage/CITY_XY/home/user123/

If you work within interactive job with scratch directory, then export SINGULARITY_TMPDIR=$SCRATCHDIR is done automatically.

Next, download Docker image and build

singularity pull docker://uwligroup/chronusq

After ca 5 minus the singularity image chronusq_latest.sif will be ready.

To test the image, copy water molecule water.inp from here:

[Molecule]
charge = 0
mult = 1
geom:
 O     0.0     -0.076    0.0
 H     0.867    0.601    0.0
 H    -0.867    0.601    0.0


[QM]
reference = Real RHF
job = SCF

[BASIS]
basis = 6-31G(d)

[MISC]
nsmp = 1
mem = 100 MB

and run the calculation of single-point ground state energy as

    singularity exec chronusq_latest.sif chronusq water.inp

Advanced options

Custom Singularity build

Preparing your own Singularity image is intended for experienced users. Reading Singularity documentation is a good idea too.

To build custom image, root privileges are needed, but this can be replaced by User Namespace Remapping. For this purpose MetaCentrum offers a server builder.metacentrum.cz with User Namespace Remapping.

Image file is read-only and to modify it you have to use sandbox directory. In this example we use Debian Buster docker image.

singularity build -f -s test1.sbox docker://debian:buster

After running container from sandbox, you can make changes via package system, compile the source codes, install pip/conda modules etc. In this example we install ffmpeg package in Debian Buster environment.

It is necessary to work in the scratch directory, using fakeroot mode (-f options) is not possible on storages (/storage/cityXY/...).

singularity build -f -s test1.sbox docker://debian:buster

After running container from sandbox, you can make changes via package system, compile the source codes, install pip/conda modules etc. In this example we install ffmpeg package in Debian Buster environment.

singularity shell -f -w test1.sbox
Singularity> apt update && apt install ffmpeg
Singularity> exit

Build image from sandbox:

singularity build -f test1.SIF test1.sbox

For the repeatable build of image you can use the definition file, example test1.def

Bootstrap: docker
From: debian:buster
%post
apt-get update && apt-get install -y ffmpeg

Build image from recipe file:

singularity build –f test1.SIF test1.def

For more details, see https://sylabs.io/guides/3.7/user-guide/definition_files.html.

Singularity parallelized job

The scenario for this setup is: two nodes with common scratch dir

#!/bin/bash
#PBS -l select=2:ncpus=2:mem=1gb:scratch_shared=4gb
#PBS -l walltime=04:00:00
#PBS -l place=scatter
# modify/delete the above given guidelines according to your job's needs

module add openmpi/2.0.1-gcc
cat $PBS_NODEFILE |uniq >nodes.txt

# run job over ethernet or infiniband (mpirun autoselects better)
mpirun -n 2 --hostfile nodes.txt singularity exec my_image.img /path/to/program
